准备
1.一个cloudflare账号 https://dash.cloudflare.com/
2.一个B2账号 https://www.backblaze.com/b2/cloud-storage.html
3.windows软件ShareX
步骤

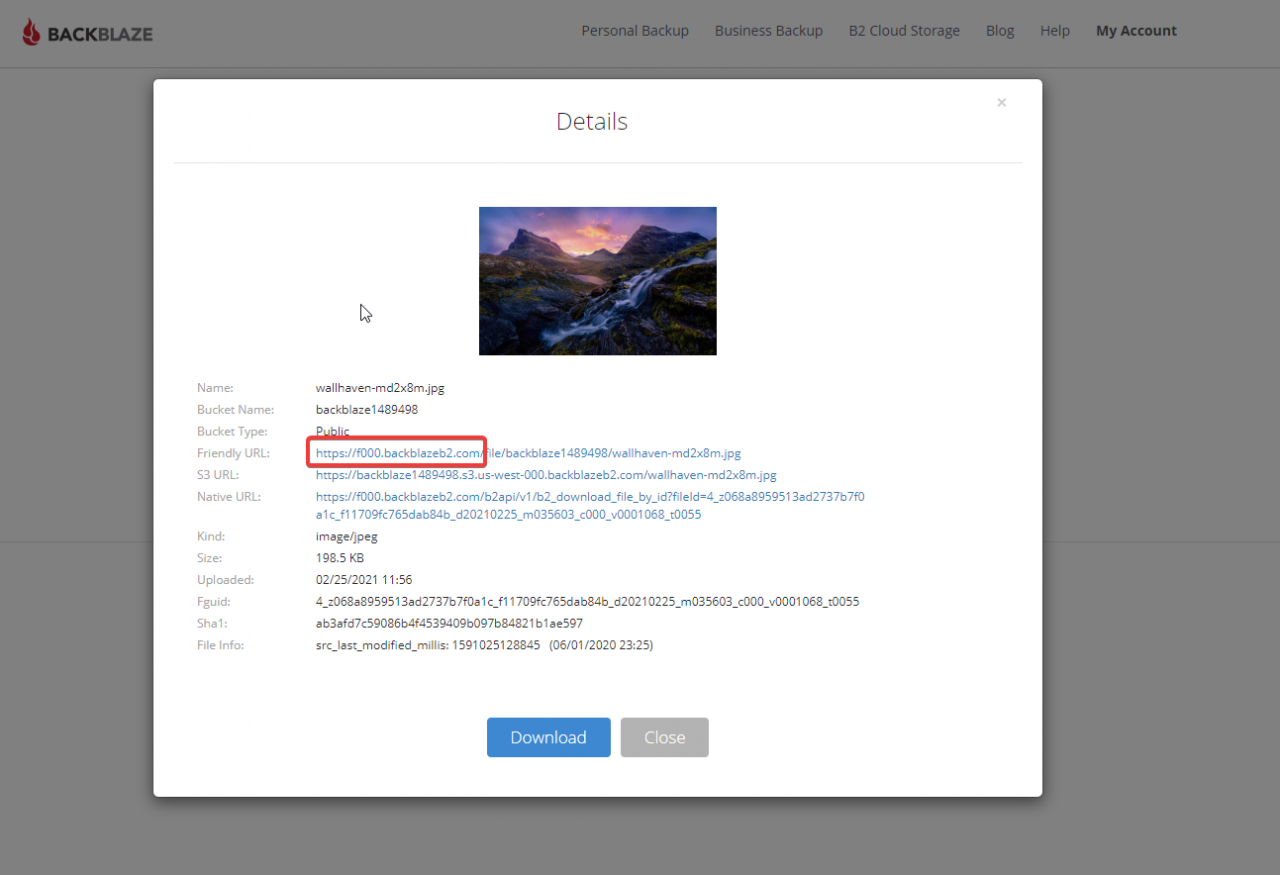

1.注册B2账号,点击进入B2 Cloud Storage,点击Buckets创建一个BUcket,设为public,并上传一个图片,记录下下图要用的域名

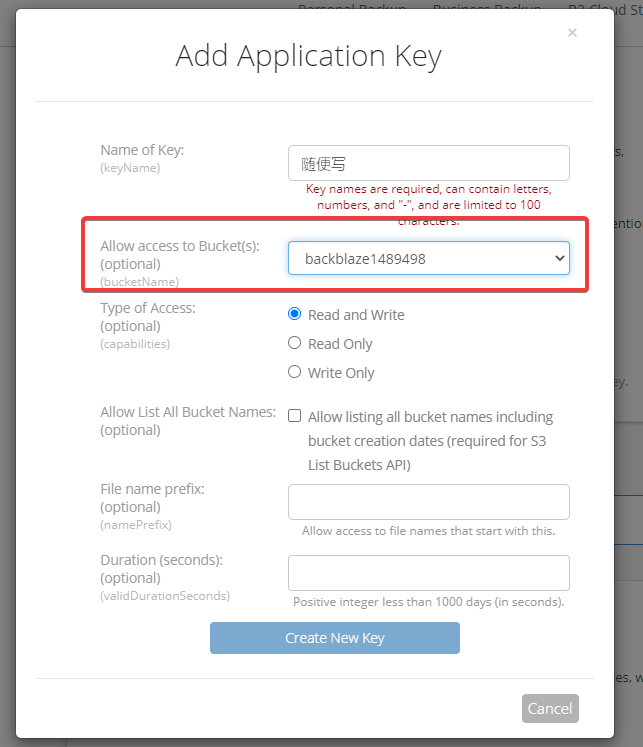

2.点击App keys,添加一个新的key,bucket就选你刚创建的那个,记录下你的密钥,之后要在ShareX中用

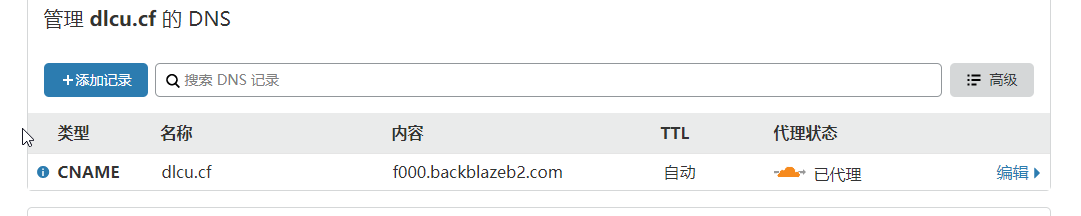

3.打开cf,cname一下上图要记的域名,小云朵点亮

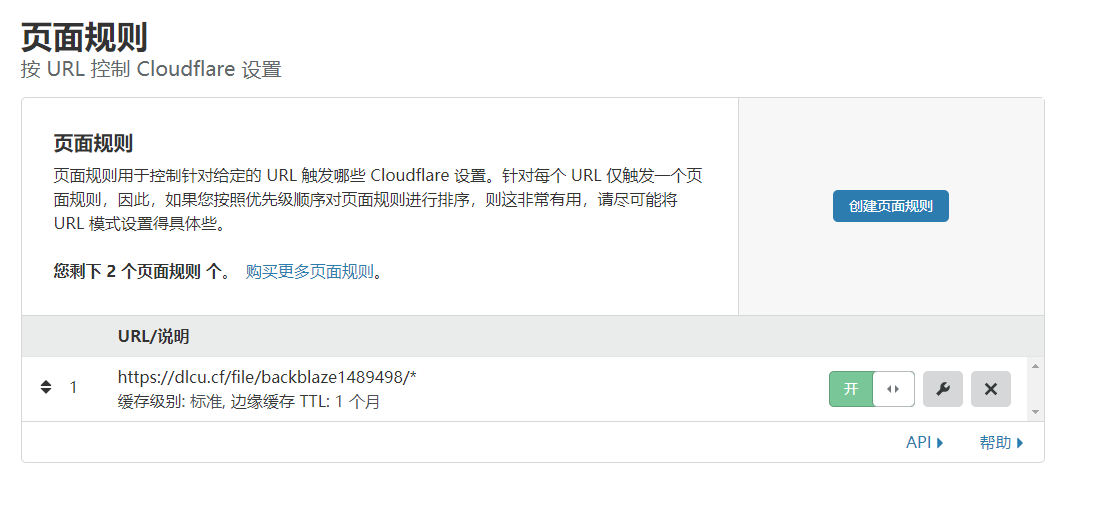

4.加一条页面缓存规则.
5.创建一个workers,粘贴下列代码,记得b2domain和bucket的值改成自己的
\’use strict\’;
const b2Domain = \’img.domain.com\’; // configure this as per instructions above
const b2Bucket = \’bucket-name\’; // configure this as per instructions above
const b2UrlPath = `/file/${b2Bucket}/`;
addEventListener(\’fetch\’, event => {
return event.respondWith(fileReq(event));
});
// define the file extensions we wish to add basic access control headers to
const corsFileTypes = [\’png\’, \’jpg\’, \’gif\’, \’jpeg\’, \’webp\’];
// backblaze returns some additional headers that are useful for debugging, but unnecessary in production. We can remove these to save some size
const removeHeaders = [
\’x-bz-content-sha1\’,
\’x-bz-file-id\’,
\’x-bz-file-name\’,
\’x-bz-info-src_last_modified_millis\’,
\’X-Bz-Upload-Timestamp\’,
\’Expires\’
];
const expiration = 31536000; // override browser cache for images – 1 year
// define a function we can re-use to fix headers
const fixHeaders = function(url, status, headers){
let newHdrs = new Headers(headers);
// add basic cors headers for images
if(corsFileTypes.includes(url.pathname.split(\’.\’).pop())){
newHdrs.set(\’Access-Control-Allow-Origin\’, \’*\’);
}
// override browser cache for files when 200
if(status === 200){
newHdrs.set(\’Cache-Control\’, “public, max-age=” expiration);
}else{
// only cache other things for 5 minutes
newHdrs.set(\’Cache-Control\’, \’public, max-age=300\’);
}
// set ETag for efficient caching where possible
const ETag = newHdrs.get(\’x-bz-content-sha1\’) || newHdrs.get(\’x-bz-info-src_last_modified_millis\’) || newHdrs.get(\’x-bz-file-id\’);
if(ETag){
newHdrs.set(\’ETag\’, ETag);
}
// remove unnecessary headers
removeHeaders.forEach(header => {
newHdrs.delete(header);
});
return newHdrs;
};
async function fileReq(event){
const cache = caches.default; // Cloudflare edge caching
const url = new URL(event.request.url);
if(url.host === b2Domain && !url.pathname.startsWith(b2UrlPath)){
url.pathname = b2UrlPath url.pathname;
}
let response = await cache.match(url); // try to find match for this request in the edge cache
if(response){
// use cache found on Cloudflare edge. Set X-Worker-Cache header for helpful debug
let newHdrs = fixHeaders(url, response.status, response.headers);
newHdrs.set(\’X-Worker-Cache\’, “true”);
return new Response(response.body, {
status: response.status,
statusText: response.statusText,
headers: newHdrs
});
}
// no cache, fetch image, apply Cloudflare lossless compression
response = await fetch(url, {cf: {polish: “lossless”}});
let newHdrs = fixHeaders(url, response.status, response.headers);
if(response.status === 200){
response = new Response(response.body, {
status: response.status,
statusText: response.statusText,
headers: newHdrs
});
}else{
response = new Response(\’File not found!\’, { status: 404 })
}
event.waitUntil(cache.put(url, response.clone()));
return response;
}

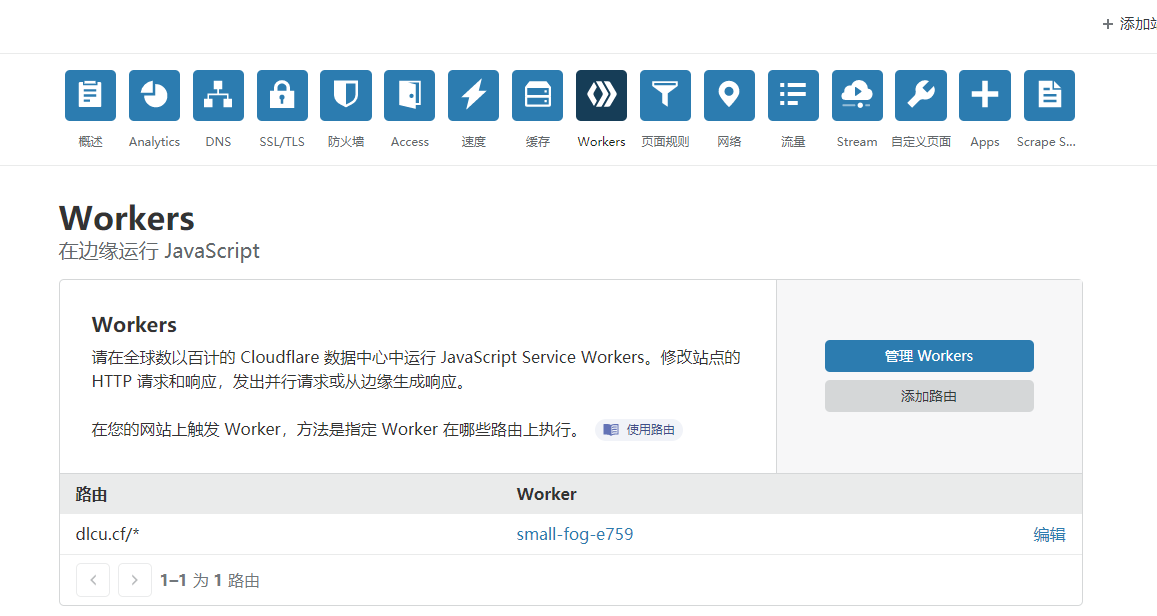

6.workers里添加路由,使访问你的域名时,先走workers
访问一下你的图片文件
比如说一开始是https://f000.backblazeb2.com/file/backblaze1489498/wallhaven-md2x8m.jpg
现在用https://dlcu.cf/wallhaven-md2x8m.jpg就可以访问了

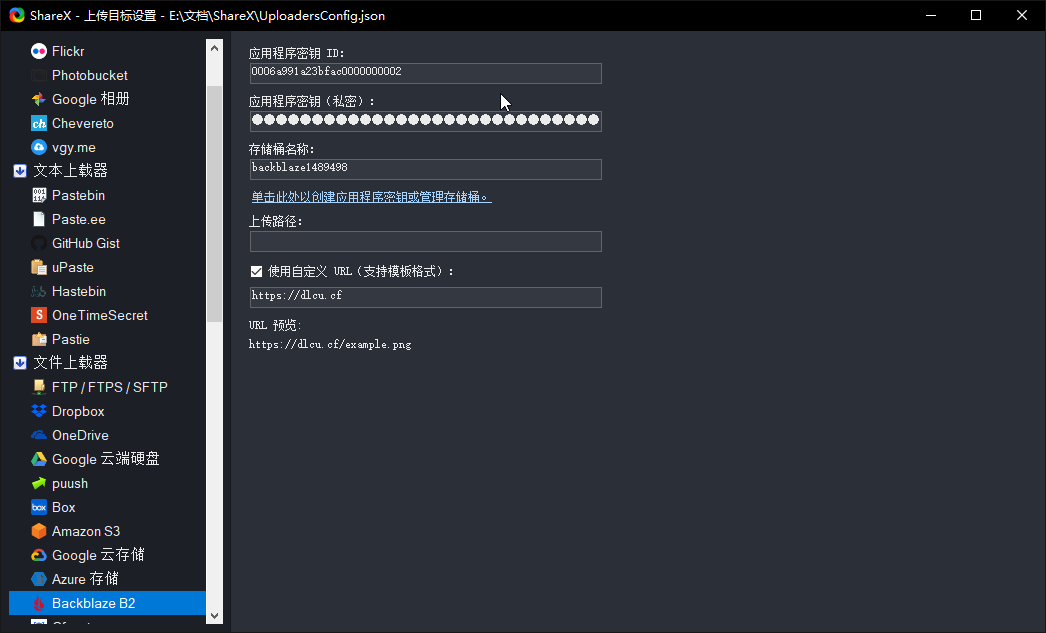

7.配置ShareX.
这个感觉没啥好说的,主页面–目标–上传目标设置–backblaze b2,填上就行了
结束
这个的好处就是方便了上传,自己在电脑前,截一下图直接上传,或者复制一下直接上传
还有就是可以用自己的域名,再说的话就是数据自己也能找回.
演示
本文中的图片都是演示
